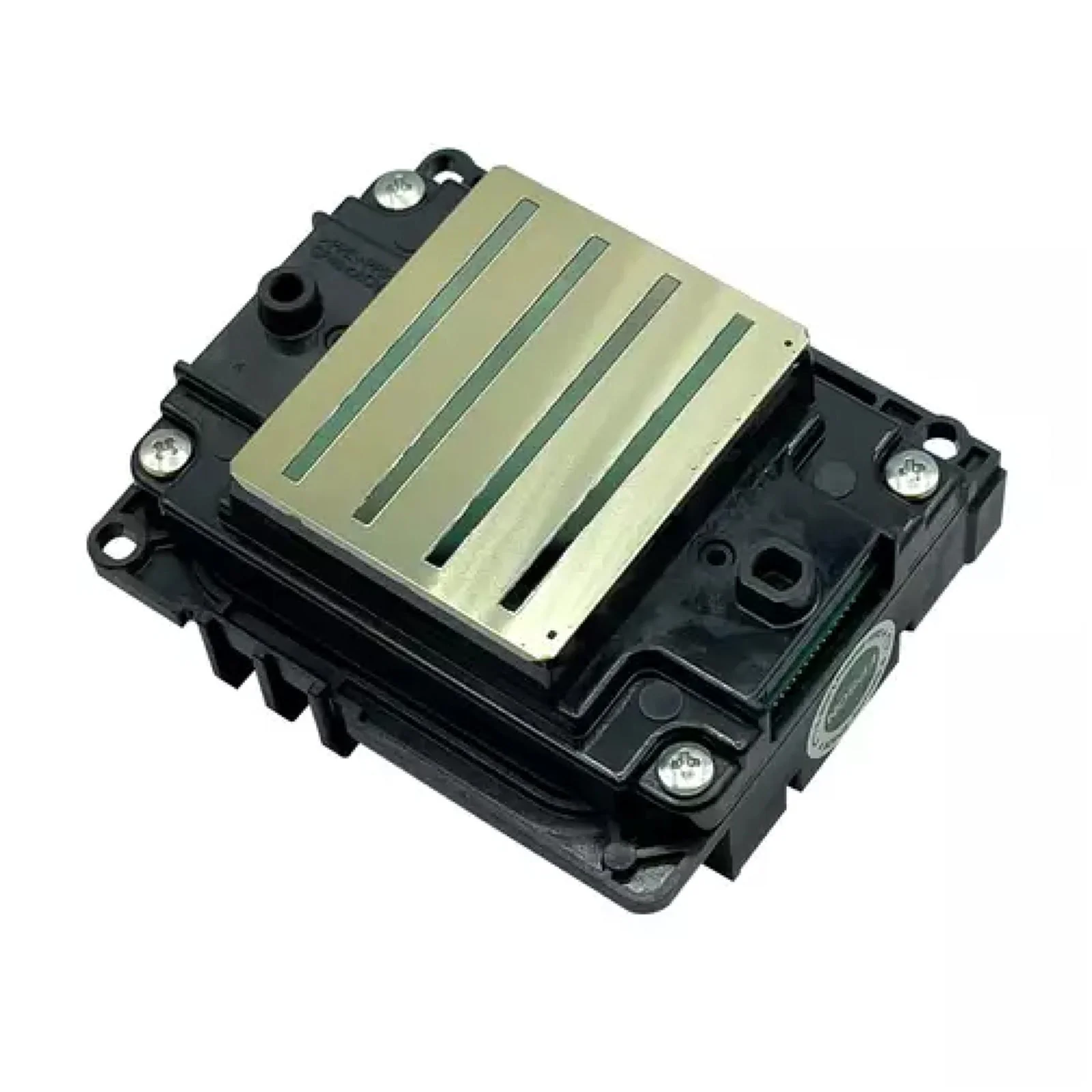

Epson i3200 Printhead

The Epson i3200 is a cost-effective 1.33 inch-wide MEMs head series providing high productivity and high image quality with 600dpi high-density resolution. This printhead is suitable for water based inks.

Specifications :

Ink Type : Aqueous
Type : PrecisionCore MicroTFP printhead
Width x Depth x Height: 69.1 x 59.4 x 35.6 mm
Weight : 82g
Number of nozzle : 3200
Nozzle pitch/nozzle row : 1/300 inch
Nozzle rows: 8 rows
Nozzle Resolution : 300 noi/row 600 npi/2 rows
Max. number of colour inks : 4 colours
Effective print width : 33.8 mm (1.33 inches)

Droplet ejection performance :

Binary : 6 plat 43.2 kHz
3 levels grey scale : 6.3, 12.3 pl at 21.6 kHz
4 levels grey scale 3.8, 6.1, 9.4 pl at 21.6 kHz
Viscosity range : 3-4 mPa·s
This printhead carries a manufacturer warranty.
Country of origin : Japan

All defects, failures or damage not considered manufacturing defects are expressly excluded from warranty coverage
